Improving Tracker Pointing Accuracy Control Algorithms

Improving Tracker Pointing Accuracy Control Algorithms

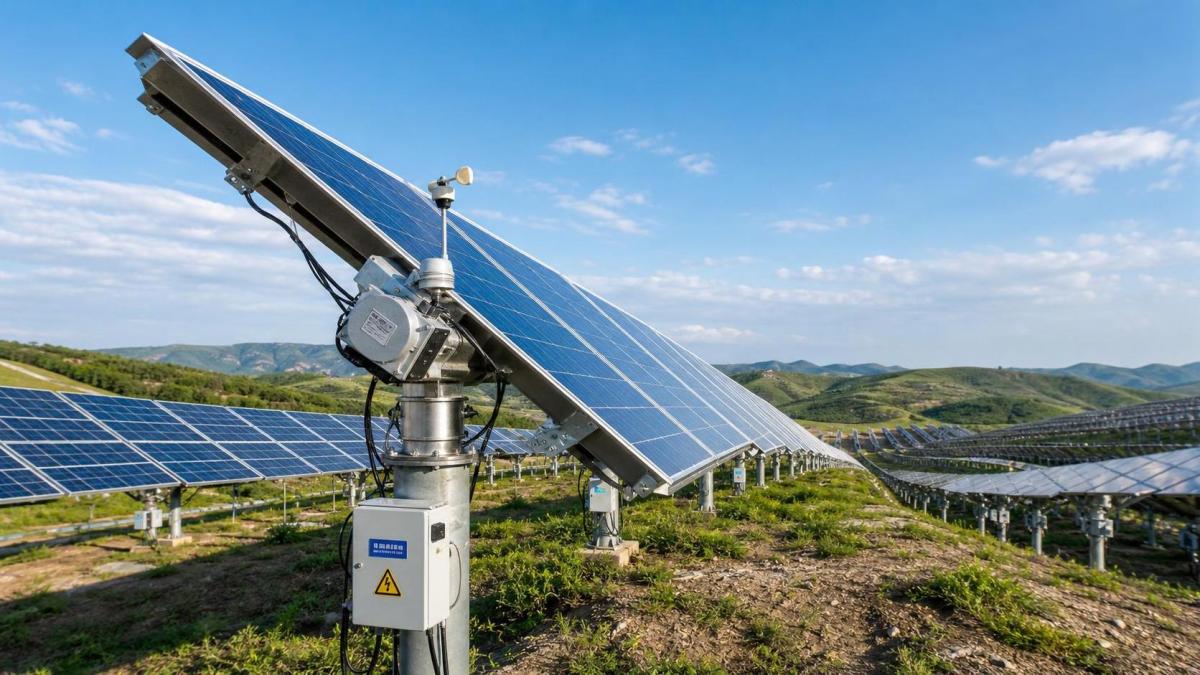

For operators working with solar tracking systems, a reliable tracker pointing accuracy control algorithm is essential to maximizing energy yield, reducing misalignment losses, and maintaining stable field performance.

This matters even more in utility-scale plants, where small pointing errors can spread across thousands of rows and quietly reduce output.

A better tracker pointing accuracy control algorithm does more than follow the sun.

It balances irradiance capture, wind safety, terrain variation, actuator response, and sensor quality in real operating conditions.

In modern renewable infrastructure, that balance directly affects yield forecasts, O&M cost, and asset availability.

From a practical standpoint, the goal is not theoretical perfection.

The goal is consistent field accuracy with fast correction, low drift, and predictable behavior under changing weather and hardware conditions.

That is where a stronger tracker pointing accuracy control algorithm becomes an application-level solution, not just a control feature.

Why Pointing Accuracy Still Breaks Down in the Field

On paper, most solar trackers already have a sun position model.

In practice, several small errors combine and push rows away from the intended angle.

Common causes include encoder drift, sensor offset, actuator backlash, uneven foundations, communication delay, and poorly tuned deadband settings.

Wind events also create temporary deflection, while temperature changes can alter mechanical response over a full day.

A weak tracker pointing accuracy control algorithm often treats these as isolated problems.

A better one treats them as linked error sources within one correction framework.

More importantly, some losses stay hidden.

Rows may still move, alarms may stay quiet, and daily production may look acceptable.

Yet cumulative angle error can still cut annual yield enough to matter in PPA-driven projects.

Core Design of a Better Tracker Pointing Accuracy Control Algorithm

An effective tracker pointing accuracy control algorithm usually combines prediction, measurement, correction, and verification.

The baseline starts with an astronomical sun position model and site-specific geometry data.

That gives the target angle.

The control layer then compares target position with real row position from encoders, inclinometers, or angle sensors.

A correction engine filters noise, accounts for backlash, and avoids unnecessary micro-movements that increase wear.

The final step is feedback validation.

If the expected motion did not happen, the algorithm should identify the deviation and trigger a retry, hold, or fault path.

In real deployments, the most useful logic includes these elements:

• Adaptive deadband that changes with irradiance, time of day, and wind condition.
• Offset calibration tables for row groups with recurring structural bias.
• Sensor fusion between encoder readings and secondary angle feedback.
• Fault discrimination that separates sensor failure from mechanical sticking.
• Short-interval trend monitoring to catch drift before production impact grows.

This is where the tracker pointing accuracy control algorithm shifts from static control to resilient field optimization.

How Sensor Feedback Improves Real-Time Correction

Sensor feedback is often the difference between nominal tracking and reliable tracking.

A tracker pointing accuracy control algorithm without trustworthy feedback can only assume the command was executed correctly.

That assumption fails frequently in dusty, hot, remote, and mechanically stressed environments.

Useful feedback sources include rotary encoders, MEMS tilt sensors, irradiance sensors, anemometers, and motor current signatures.

Each source has limitations, but together they reveal a clearer operating state.

For example, if the commanded angle changes but tilt data does not, the system may be facing linkage slippage or motor stall.

If position error rises only during gusts, the control logic may need a wind-aware stability mode rather than a maintenance response.

This kind of distinction saves time and avoids unnecessary truck rolls.

Practical Feedback Rules That Work

1. Filter short spikes, but do not smooth away persistent error.
2. Set separate thresholds for warning, correction, and shutdown.
3. Compare neighboring rows to spot localized deviations faster.
4. Log correction frequency, not only final angle error.

Application Strategy for Existing Solar Tracker Fleets

Many sites do not need full hardware replacement to improve tracking precision.

In many cases, a revised tracker pointing accuracy control algorithm can deliver measurable gains through software and selective instrumentation.

The first step is to classify the current error pattern.

Is the problem random, systematic, weather-linked, or row-specific?

That answer determines whether to tune the algorithm, recalibrate sensors, change motion logic, or inspect mechanics.

A practical upgrade path usually looks like this:

This staged approach fits both new commissioning work and retrofit programs across large tracker portfolios.

Risk Control, Wind Response, and Reliability Tuning

Improving accuracy should never reduce structural safety.

That is why the tracker pointing accuracy control algorithm must work with stow logic, not against it.

During gusty periods, aggressive correction can create hunting behavior and extra actuator cycles.

A stronger design uses mode-based control.

Normal mode targets energy capture.

Stability mode limits movement under variable wind.

Protection mode prioritizes stow and mechanical preservation.

This also helps maintenance teams interpret behavior correctly.

What looks like underperformance may actually be controlled risk reduction during unstable conditions.

Another reliability issue is overcorrection near sunrise and sunset.

At low sun angles, the energy gain from perfect tracking may not justify constant repositioning.

A refined tracker pointing accuracy control algorithm recognizes that tradeoff and reduces wear without giving away meaningful yield.

What to Measure After Deployment

No control upgrade is complete without post-deployment verification.

The right tracker pointing accuracy control algorithm should improve both technical and operational indicators.

Focus on a short list of metrics that reflect actual plant value:

• Mean pointing error by row group and time band.
• Correction success rate after command execution.
• Actuator cycle count before and after tuning.
• Wind-related stow events and recovery time.
• Specific yield improvement against comparable weather days.
• Alarm quality, including false positives and missed faults.

From recent field trends, the clearer signal is that plants now expect algorithm changes to prove value quickly.

That means accuracy gains must show up in availability, maintenance effort, or production recovery within normal reporting cycles.

If they do not, the control strategy still needs work.

A Practical Path Forward

Improving solar tracking performance rarely comes from one dramatic change.

It usually comes from a better tracker pointing accuracy control algorithm, cleaner feedback, and tighter operating rules.

For large renewable assets, this is a practical optimization step with direct revenue impact.

Start with measured error patterns.

Then align the tracker pointing accuracy control algorithm with actual site behavior, not ideal assumptions.

Use adaptive correction, validate with sensor feedback, and connect every tuning change to yield, wear, and reliability outcomes.

That approach is easier to defend internally and easier to scale across fleets.

When the control logic becomes more precise and more situationally aware, pointing accuracy stops being a persistent loss source and starts acting like a managed performance lever.
